Overview
Â

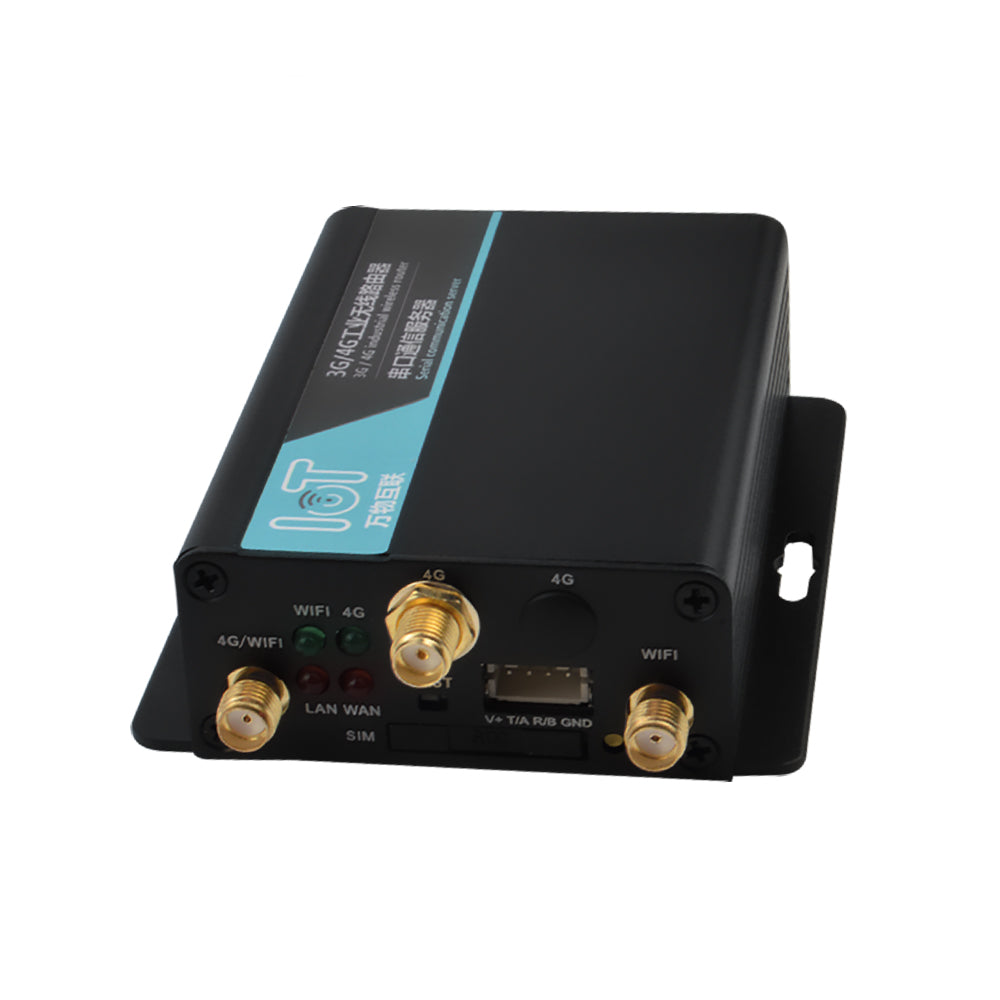

The X280 adopts QCA9531/4531 Qualcomm SOC chip. It supports Linux, OpenWRT and customized development. It is an integrated 802.11 b/g/n WIFI solution, which can be widely used in smart devices and cloud service applications, including wired Switch to wireless, 4G to WIFI, wireless camera, hard AP, router, DTU industrial 4G router, unmanned vending machine, etc.
Â
Applicable for:
IoT Applications; WIFI Smart Home; WIFI Security Monitoring; Industrial Control; Consumer Electronics; Wired to wireless; 4G to WIFI Sharing; Wireless Camera; Hard AP; 4G LTE Router; Unmanned Vending Machine; Portable WIFI Hotspot etc.
Â
Key Benefits
- Wide Voltage Input DC6V-35V With Auto Power-Off Protection;
- Site Control, Port Mapping, DMZ Host etc.;
- IEEE 802.11 b/gn, Max. Transmission Rate: 300Mbps;
- Wireless Video Surveillance and Dynamic Image Transmission Supported;
- CDMA, WCDMA, GSM, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE etc. Supported;
- Serial Port, TCP/UDP Pass-Through Data Transmission and AT Command Interactive Transmission;
- VPN, VPDN, PPTP Client, L2TP Client Supported;
- Auto Network Detection, Dial Failure Auto Reboot, Timing Reboot etc. Supported;
- Wired Connection, 4G Network Backup, Auto Switch Between Wired Connection & 4G Network;
- Hardware & Software Watchdog Crashproof Design, Running Stably;
- Onboard 128MB DDR2 Memory, 16MB FLash;
- 480Mbps High-Speed USB Interface;
- 1ch UART (DTU);
- Abundant GPIO.
Specification of Quectel EC25 Series IoT/M2M-optimized LTE Cat 4 Module
| Main Features: |
| Network Criteria |
Wireless Criteria: IEEE 802.11n, IEE 802.11g, IEEE 802.11b |
| Wired Criteria: IEEE 802.3, IEEE 802.3u |
| Max. Transmission Rate |
300Mbps |
| Coverage |
100 Meters in Open-Air Environment |
| Frequency |
2.412-2.472GHz |
| Antenna |
2x Built-in High Efficiency Antenna(Extended) |

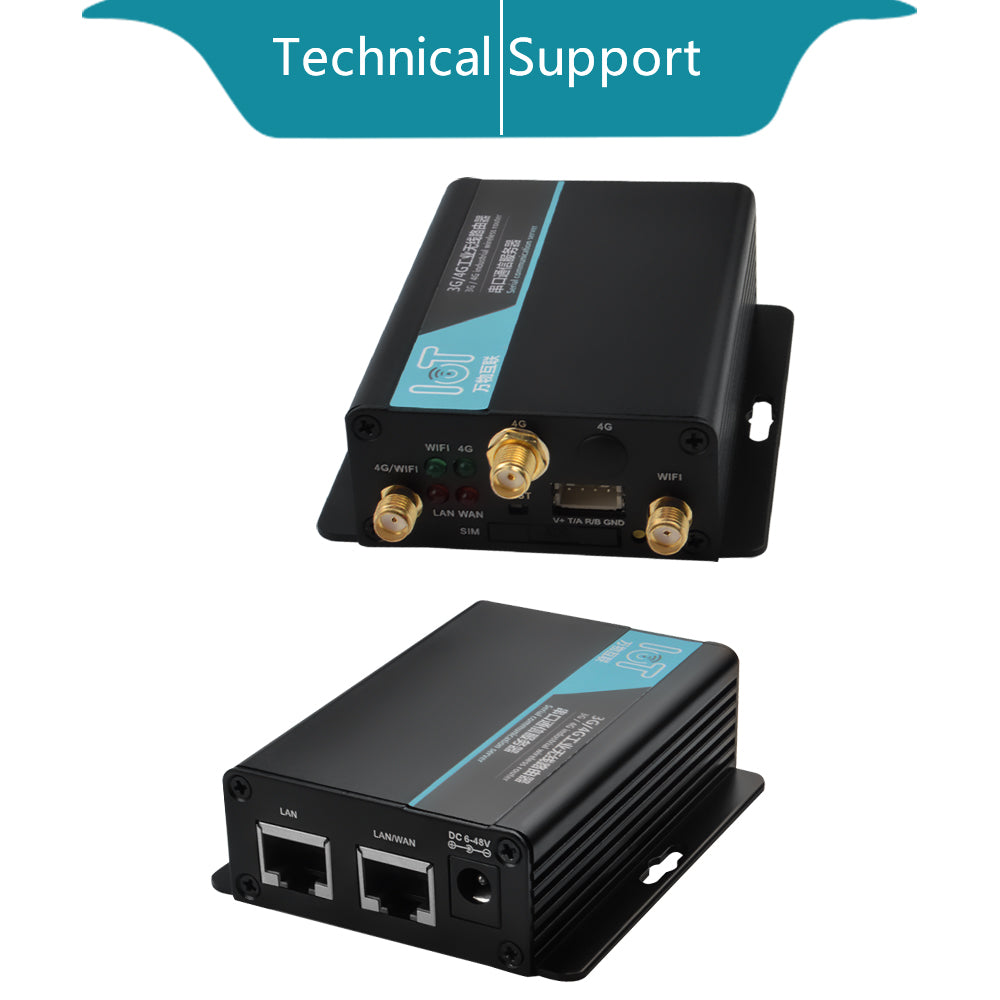

| Network Port |
1x WAN, 1x LAN |
| USB Port |
1x USB Port |
| Function |
| WPS |
Not Supported(Customizable) |
| VPN |
Supported |
| VPDN |
Supported |
| APN |
Supported |
| Network Management |
Based on Web |
| Firewall |
Built-in Firewall |
| OS Supported |
Windows XP, Vista, Windows 7/10, MAC and Linux |
| Wireless Security |
WPA, WPA2, 128-bit WEP Encryption Supported and MAC Filtering |
| Others |
| Unit Dimension |
85(L)x76(W)x24(H)mm |
| Power Supply |
AC120~240V, DC 6~50V, 1A |
| Advantages: |
| Industrial-grade design, piano paint surface, metal base, full of luxury and honor |
| Turbo mode is activated with one button, and the wall penetration ability is easily doubled, and you can enjoy the extreme speed |
| Quick Link one-key setting, fast connection to the computer, easy encryption, safe and worry-free |
| Support external antenna dual jack, you can switch the built-in antenna at any time or use your own external antenna |
