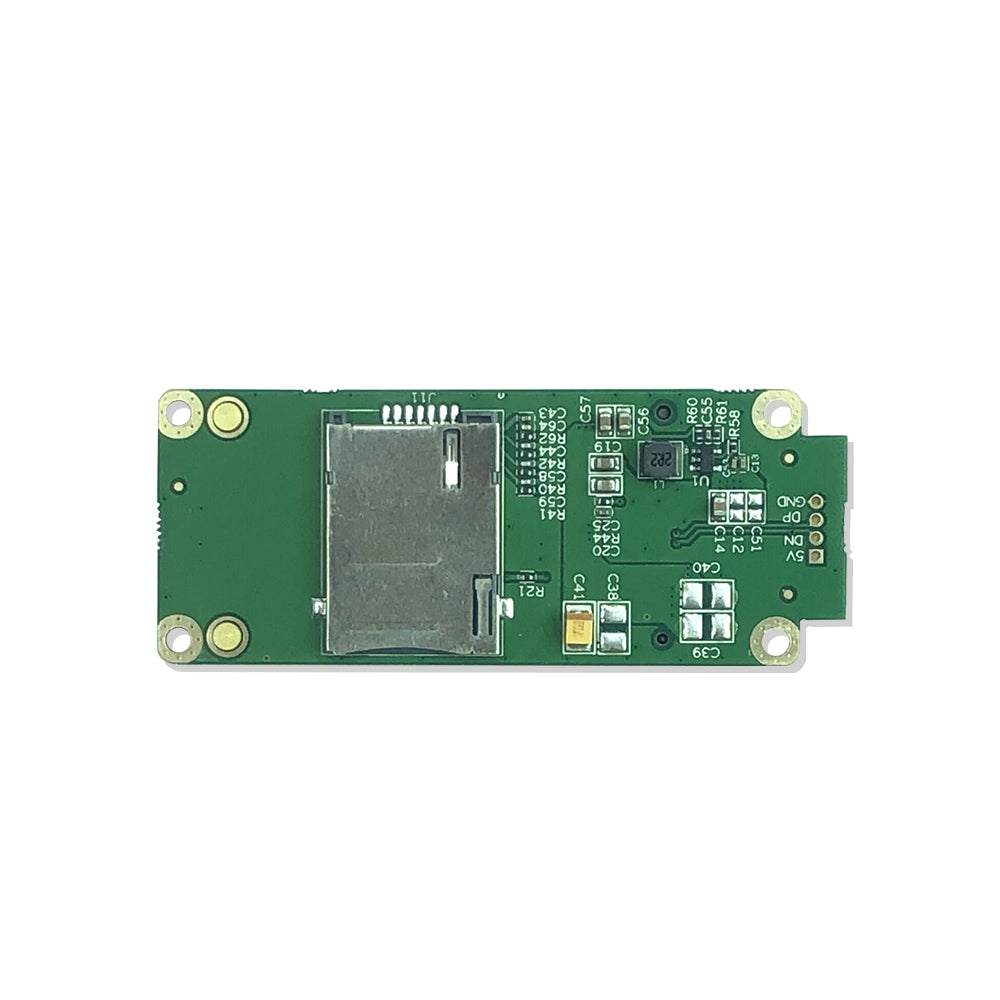

4G LTE Industrial Mini PCIe to USB (4PIN PH2.54) Adapter W/SIM Card Slot USB 2.0 4PIN PH2.54 Connector for WWAN/LTE 3G/4G Module
Regular price
$11.57 USD
Regular price
$21.57 USD
Sale price
$11.57 USD
Unit price
/
per
Share
Overview
Advantages
- Compatible with all 3G、4G wireless modules in the market, such as HUAWEI, ZTE, AIRCARD, LONGSUNG, YUGA, QUECTEL, MEIG, SIMCOM, SAMSUNG, HUAYU, DTT etc.
- Can be used for testing module as well as WiFi module (USB bus) and Mini PCI-E interface card (USB bus) via USB connector.
- To guarantee the module can always be working fine and never be offline even under severe environment, this adapter adopted the industrial level electric circuit design, one DC-DC power chip and two external tantalum capacitors. As we might know, when signal is unstable or weak, modules will consumpt much more power especially for 4G modules. But if we still use normal LDO chip, the 4G module will be offline because it cannot meet the request of power consumption of 4G module at that time.
- Working principle: the interface definition of Mini PCI-E is USB signal and 3.6V, the input voltage 5V by USB will be converted into 3.6V via DC-DC power chip to power on module and UIM/SIM card. (The working voltage of 3G/4G module is 3.3V-4.2V).
Specification
Basics

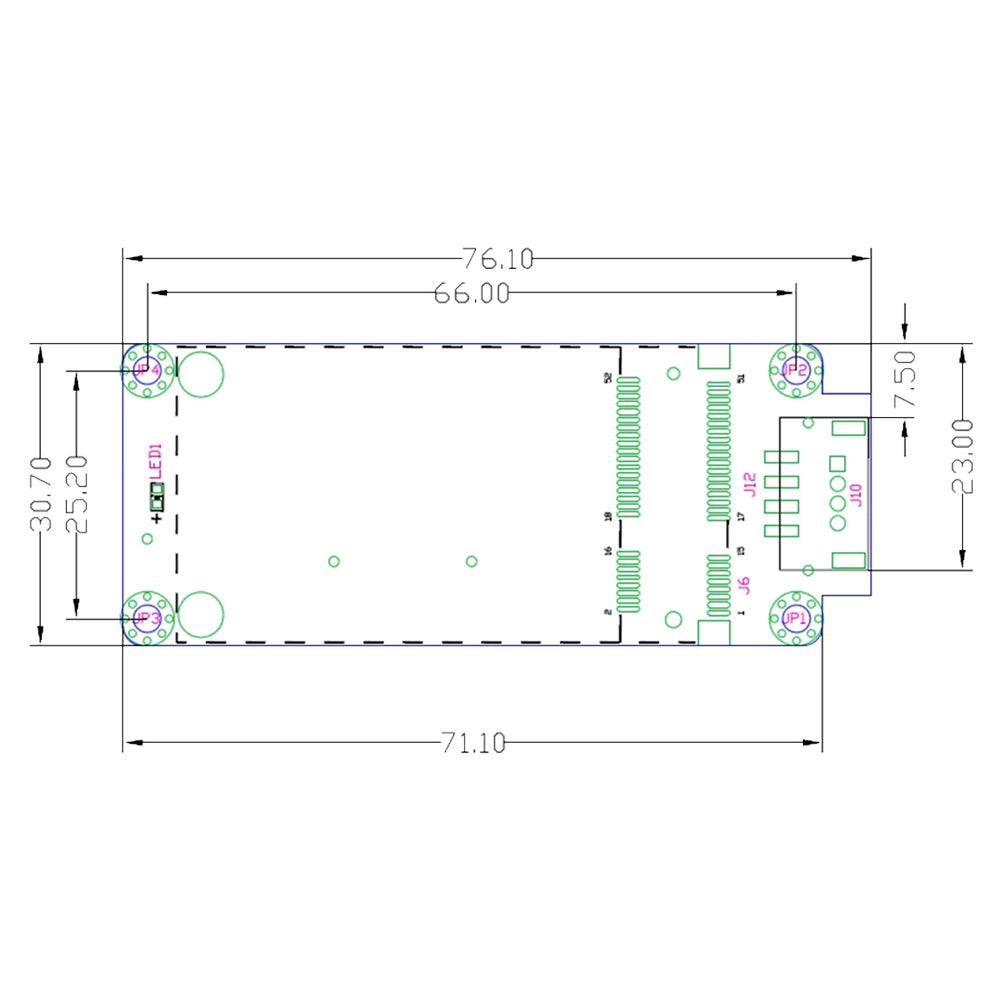

- Dimension: 80mm(L)x32mm(W)
- 4PIN connector: PITCH2.54, 4PIN
- The design of Mini PCI-E is compliant with industrial criteria V1.3.
- Applicable for half & full height module(WWAN/3G/4G/WiFi Module).
- LED indicator will be always on when it it working.
- Pure hardware design, no driver needed.
Package Contents
- 1x 4G LTE Industrial Mini PCIe to USB Adapter(Packed in Antistatic Bag)
- 1x 3A Current Cable
- 1x Matched Screw
Compatible Module
LTE Cat 4 | EC25-E | EC25-EU | EC25-EUX | EC25-J |
Region/Operator | EMEA/South Korea/Thailand/India | EMEA/Thailand | EMEA/Thailand | Japan |
Dimensions(mm) | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 |
Temperature Ranges | ||||
Operating Temperature | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C |
Extended Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
Frequency Bands | ||||
LTE-FDD | B1/B3/B5/B7/B8/B20 | B1/B3/B7/B8/B20/B28A | B1/B3/B7/B8/B20/B28A | B1/B3/B8/B18/B19/B26 |
LTE-TDD | B38/B40/B41 | B38/B40/B41 | B38/B40/B41 | B41 |
WCDMA | B1/B5/B8 | B1/B8 | B1/B8 | B1/B6/B8/B19 |
GSM/EDGE | B3/B8 | B3/B8 | B3/B8 | / |
GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
Certifications | ||||
Carrier |
Global: Vodafone Europe: Deutsche Telekom/Telefónica South Korea: SKT/KT*/LGU+* |
Europe: Deutsche Telekom/ British Telecom |
/ | Japan: NTT DOCOMO/SoftBank/KDDI |
Regulatory |
Global: GCF Europe: CE South Korea: KC Taiwan (China): NCC Australia/New Zealand: RCM Thailand: NBTC Russia: FAC South Africa: ICASA |
Global: GCF Europe: CE Taiwan (China): NCC Australia/New Zealand: RCM |
Global: GCF Europe: CE Taiwan (China): NCC Australia/New Zealand: RCM |
Japan: JATE/TELEC |
Others | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL |
Data Transmission | ||||
LTE-FDD Data Rates (Mbps) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) |
LTE-TDD Data Rates (Mbps) | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) |
DC-HSPA+ Data Rates (Mbps) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) |
WCDMA Data Rates (kbps) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) |
EDGE Data Rates (kbps) | 296 (DL)/ 236.8 (UL) | 296 (DL)/ 236.8 (UL) | 296 (DL)/ 236.8 (UL) | / |
GPRS Data Rates (kbps) | 107 (DL)/ 85.6 (UL) | 107 (DL)/ 85.6 (UL) | 107 (DL)/ 85.6 (UL) | / |
Interfaces | ||||
(U)SIM | x 1 | x 1 | x 1 | x 1 |
UART | x 2 | x 2 | x 2 | x 2 |
USB2.0 | x 1 | x 1 | x 1 | x 1 |
Audio Digital(PCM) | x 1 | x 1 | x 1 | x 1 |
I2C | x 1 | x 1 | x 1 | x 1 |
SDIO | x 2 | x 2 | x 1 | x 2 |
SGMII | x 1 | x 1 | x 1 | x 1 |
Bluetooth* | x 1 | x 1 | / | x 1 |
ADC | x 2 | x 2 | x 2 | x 2 |
Voice | ||||
Speech Codec Modes | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB |
Echo Arithmetic | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression |
VoLTE | Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Enhanced Features | ||||
DTMF | ● | ● | ● | ● |
DFOTA | ● | ● | ● | ● |
QMI/RmNet | ● | ● | ● | ● |
Audio Playback*/Audio Recording* | Optional | Optional | Optional | Optional |
QuecLocator® | ● | ● | ● | ● |
QuecFile® | ● | ● | ● | ● |
(U)SIM Card Detection | ● | ● | ● | ● |
Drivers | ||||
USB Serial Driver | Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
GNSS Driver | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x |
RIL Driver | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x |
NDIS | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 |
MBIM | Windows 8/8.1/10, Linux 3.18–5.4 |
Windows 8/8.1/10, Linux 3.18–5.4 |
/ | Windows 8/8.1/10, Linux 3.18–5.4 |
GobiNet Driver | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 |
QMI_WWAN Driver | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 |
Electrical Features | ||||
Supply Voltage Range | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. |
Power Consumption | 3.9 mA @ Sleep, Typ. 30 mA @ Idle |
3.4 mA @ Sleep, Typ. 23.3 mA @ Idle |
1.69 mA @ Sleep, Typ. 18.51 mA @ Idle |
3.2 mA @ Sleep, Typ. 31.5 mA @ Idle |
LTE Cat 4 | EC25-A Mini PCIe | EC25-V Mini PCIe | EC25-AF Mini PCIe | EC25-AFX Mini PCIe |
Region/Operator | North America | America Verizon | North America | North America |
Dimensions(mm) | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 |
Temperature Ranges | ||||
Operating Temperature | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C |
Extended Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
Frequency Bands | ||||
LTE-FDD | B2/B4/B12 | B4/B13 | B2/B4/B5/B12/B13/B14/B66/ | B2/B4/B5/B12/B13/B14/B66/B71 |
LTE-TDD | / | / | / | / |
WCDMA | B2/B4/B5 | / | B2/B4/B5 | B2/B4/B5 |
GSM/EDGE | / | / | / | / |
GNSS | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
Certifications | ||||
Carrier |
America: AT&T/T-Mobile Canada: Rogers/Telus |
America: Verizon |
America: Verizon/ AT&T (FirstNet)/T-Mobile Canada: Rogers/Telus |
America: Verizon/ AT&T (FirstNet)* |
Regulatory |
America: FCC North America: PTCRB Canada: IC |
Global: GCF America: FCC |
Global: GCF America: FCC North America: PTCRB Canada: IC |
Global: GCF America: FCC North America: PTCRB Canada: IC |
Others | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL |
Data Transmission | ||||
LTE-FDD Data Rates (Mbps) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) |
LTE-TDD Data Rates (Mbps) | / | / | / | / |
DC-HSPA+ Data Rates (Mbps) | 42 (DL)/ 5.76 (UL) | / | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) |
WCDMA Data Rates (kbps) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) |
EDGE Data Rates (kbps) | / | / | / | / |
GPRS Data Rates (kbps) | / | / | / | / |
Interfaces | ||||
(U)SIM | x 1 | x 1 | x 1 | x 1 |
UART | x 1 | x 1 | x 1 | x 1 |
USB2.0 | x 1 | x 1 | x 1 | x 1 |
Audio Digital(PCM) | x 1 | x 1 | x 1 | x 1 |
LED_WWAN# | x 1 | x 1 | x 1 | x 1 |
W_DISABLE# | x 1 | x 1 | x 1 | x 1 |
UART | x 1 | x 1 | x 1 | x 1 |
PERST# | x 1 | x 1 | x 1 | x 1 |
Voice | ||||
Speech Codec Modes | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB |
Echo Arithmetic | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression |
VoLTE | Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Enhanced Features | ||||
DTMF | ● | ● | ● | ● |
DFOTA | ● | ● | ● | ● |
QMI/RmNet | ● | ● | ● | ● |
Audio Playback*/Audio Recording* | Optional | Optional | Optional | Optional |
QuecLocator® | * | ● | ● | ● |
QuecFile® | ● | ● | ● | ● |
(U)SIM Card Detection | ● | ● | ● | ● |
Drivers | ||||
USB Serial Driver | Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
GNSS Driver | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x |
RIL Driver | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x |
NDIS | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 |
MBIM | Windows 8/8.1/10, Linux 3.18–5.4 |
Windows 8/8.1/10, Linux 3.18–5.4 |
Windows 8/8.1/10, Linux 3.18–5.4 |
Windows 8/8.1/10, Linux 3.18–5.4 |
GobiNet Driver | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 |
QMI_WWAN Driver | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 |
Electrical Features | ||||
Supply Voltage Range | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. |
Power Consumption | 3.6 mA @ Sleep, Typ. 27 mA @ Idle |
3.4 mA @ Sleep, Typ. 30 mA @ Idle |
2.2 mA @ Sleep, Typ. 21.7 mA @ Idle |
1.67 mA @ Sleep, Typ. 22 mA @ Idle |
LTE Cat 4 | EC25-MX Mini PCIe | EC25-AU Mini PCIe | EC25-AUX Mini PCIe | EG25-G Mini PCIe |
Region/Operator | Mexico | Latin America/Australia/New Zealand | Latin America/Australia/New Zealand | Global |
Dimensions(mm) | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 | 30.0 x 51.0 x 4.9 |
Temperature Ranges | ||||
Operating Temperature | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C | -35°C to +75°C |
Extended Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
Frequency Bands | ||||
LTE-FDD | B2/B4/B5/B7/B28/B66 | B1/B2①/B3/B4/B5/B7/B8/B28 | B2/B4/B5/B12/B13/B14/B66/ | B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28 |
LTE-TDD | / | B40 | B40 | B38/B39/B40/B41 |
WCDMA | B2/B4/B5 | B1/B2/B5/B8 | B1/B2/B4/B5/B8 | B1/B2/B4/B5/B6/B8/B19 |
GSM/EDGE | / | B2/B3/B5/B8 | B2/B3/B5/B8 | B2/B3/B5/B8 |
GNSS | / | GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) |
Certifications | ||||
Carrier | / | Australia: Telstra | / |
Europe: Deutsche Telekom America: Verizon/AT&T/U.S. Cellular Canada: Telus/Rogers* |
Regulatory |
America: FCC North America: PTCRB Mexico: IFETEL |
Global: GCF America: FCC Taiwan (China): NCC Brazil: Anatel Australia/New Zealand: RCM |
Europe: CE America: FCC Taiwan (China): NCC Brazil: Anatel Australia/New Zealand: RCM |
Global: GCF Europe: CE UK: UKCA North America: PTCRB America: FCC Canada: IC Brazil: Anatel Mexico: IFETEL South Korea: KC Taiwan(China): NCC Japan: JATE/TELEC Australia & New Zealand: RCM South Africa: ICASA |
Others | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL | RoHS/WHQL |
Data Transmission | ||||
LTE-FDD Data Rates (Mbps) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) | 150 (DL)/ 50 (UL) |
LTE-TDD Data Rates (Mbps) | / | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) | 130 (DL)/ 30 (UL) |
DC-HSPA+ Data Rates (Mbps) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) | 42 (DL)/ 5.76 (UL) |
WCDMA Data Rates (kbps) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) | 384 (DL)/ 384 (UL) |
EDGE Data Rates (kbps) | / | 296 (DL)/ 236.8 (UL) | 296 (DL)/ 236.8 (UL) | 296 (DL)/ 236.8 (UL) |
GPRS Data Rates (kbps) | / | 107 (DL)/ 85.6 (UL) | 107 (DL)/ 85.6 (UL) | 107 (DL)/ 85.6 (UL) |
Interfaces | ||||
(U)SIM | x 1 | x 1 | x 1 | x 1 |
UART | x 1 | x 1 | x 1 | x 1 |
USB2.0 | x 1 | x 1 | x 1 | x 1 |
Audio Digital(PCM) | x 1 | x 1 | x 1 | x 1 |
LED_WWAN# | x 1 | x 1 | x 1 | x 1 |
W_DISABLE# | x 1 | x 1 | x 1 | x 1 |
UART | x 1 | x 1 | x 1 | x 1 |
PERST# | x 1 | x 1 | x 1 | x 1 |
Voice | ||||
Speech Codec Modes | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB | HR/FR/EFR/AMR/AMR-WB |
Echo Arithmetic | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression | Echo Cancellation/Noise Suppression |
VoLTE | Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Digital Audio and VoLTE (Voice over LTE) (Optional) |
Enhanced Features | ||||
DTMF | ● | ● | ● | ● |
DFOTA | ● | ● | ● | ● |
QMI/RmNet | ● | ● | ● | ● |
Audio Playback*/Audio Recording* | Optional | Optional | Optional | Optional |
QuecLocator® | ● | ● | ● | ● |
QuecFile® | ● | ● | ● | ● |
(U)SIM Card Detection | ● | ● | ● | ● |
Drivers | ||||
USB Serial Driver | Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
Windows 7/8/8.1/10, Linux 2.6–5.4, Android 4.x–9.x |
GNSS Driver | / | Android 4.x–9.x | Android 4.x–9.x | Android 4.x–9.x |
RIL Driver | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x | Android 4.x–10.x |
NDIS | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 | Windows 7/8/8.1/10 |
MBIM | / | Windows 8/8.1/10, Linux 3.18–5.4 |
/ | Windows 8/8.1/10, Linux 3.18–5.4 |
GobiNet Driver | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 | Linux 2.6–5.4 |
QMI_WWAN Driver | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 | Linux 3.4–5.4 |
Electrical Features | ||||
Supply Voltage Range | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. | 3.0–3.6V, 3.3 V Typ. |
Power Consumption | 1.55 mA @ Sleep, Typ. 20 mA @ Idle |
2.6 mA @ Sleep, Typ. 22 mA @ Idle |
1.9 mA @ Sleep, Typ. 23.4 mA @ Idle |
1.9 mA @ Sleep, Typ. 23.4 mA @ Idle |
