Overview

• Multiple Broadcasting - Suitable for pushing video stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses. Audio might not be so good when streaming live video to YouTube.
• Multiple Applications - Applicable not only for basic CCTV surveillance, but also for live broadcasting like video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. Full color at night with warm light.
• Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray, Dyndns), HTTP, RTSP, RTMP, VoIP, SNMP, IEEE802.1X, ONVIF, Multicast and other protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.
• Multiple Languages - English, Traditional Chinese, Simplified Chinese, Russian, Germany, Japanese are available(It might vary from different firmware versions). It can automatically match the system language of user's PC which is much easier for you.
• Cross Browsers - Real cross browers are supported like IE, Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly via brower, set audio as AAC, set the bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.

Specification

Basics	Default	User: admin; Password: 12345; IP: 192.168.120(DHCP);
	Model	ZSD3PSH16A: 3MP, Dual Light, Fixed Lens ONLY ZSD5PSH16A: 5MP, Dual Light, Fixed Lens ONLY ZSD8PSH16A: 8MP, Smart IR, Fixed Lens ONLY
	Sensor	1/2.8" Progressive Scan CMOS Sensor
	Mode	IR ON when no human is detected, Warm Light ON when human is detected, Automatically removable infrared-cut filter
	Lens	2.8mm/3.6mm/6mm/8mm[Optional]
	WDR	80dB
	Electric Shutter	Adaptive, 1/2s-1/1,000s
Video & Audio Encoding	Video Encoding	H.265/H.264 Video Encoding
	Audio Encoding	AAC/G.711U/G.711A Audio Encoding; Audio Sampling up to 16K
	Bit Rate	CBR & VBR; 256kbps~8Mbps [Adjustable]
	Frame Rate	50Hz: 1-25fps; 60Hz: 1-30fps [Adjustable]
	Main Sream	3840*2160, 3072*2048, 2592*1944, 2592*1520, 2304*1296, 1920*1080, 1280*720
	Sub Stream	704*576, 640*360, 640*480, 352*288
	RTSP(Main Stream)	rtsp://192.168.1.120:554/Iive/0
	RTSP(Sub Stream)	rtsp://192.168.1.120:554/Iive/1
Protocol	Network Protocol	IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, PPPOE, SMTP, UPNP, VOIP
	Video Protocol	CGI, RTSP, RTMP, ONVIF, HTTP, SIP, 802.1x
	Wireless Protocol	Not Available by Default
Interfaces	Network Interface	1ch RJ45 10M/100M Self Adaptive Ethernet Port
	Audio Interface	Built-in Audio BY DEFAULT
Others	Working Environment	Temparature：-30°C~60°C (-22°F~140°F); Humidity: ≤95% (Non-Condensing)
	Power Input	Powered by Standard PoE Switch or DC12V 1A or Higher (Included by Default)
	Power Consumption	≤5W
	Unit Dimension	18.5cm x 7.7cm x 7cm[7.28in x 3.03in x 2.76in]
	Package Dimension	19.5cm x 10.5cm x 10cm[7.68in x 4.13in x 3.94in]
	Net Weight	397g [0.88lb, 14.00oz]
	Gross Weight	480g [1.06lb, 16.93oz]

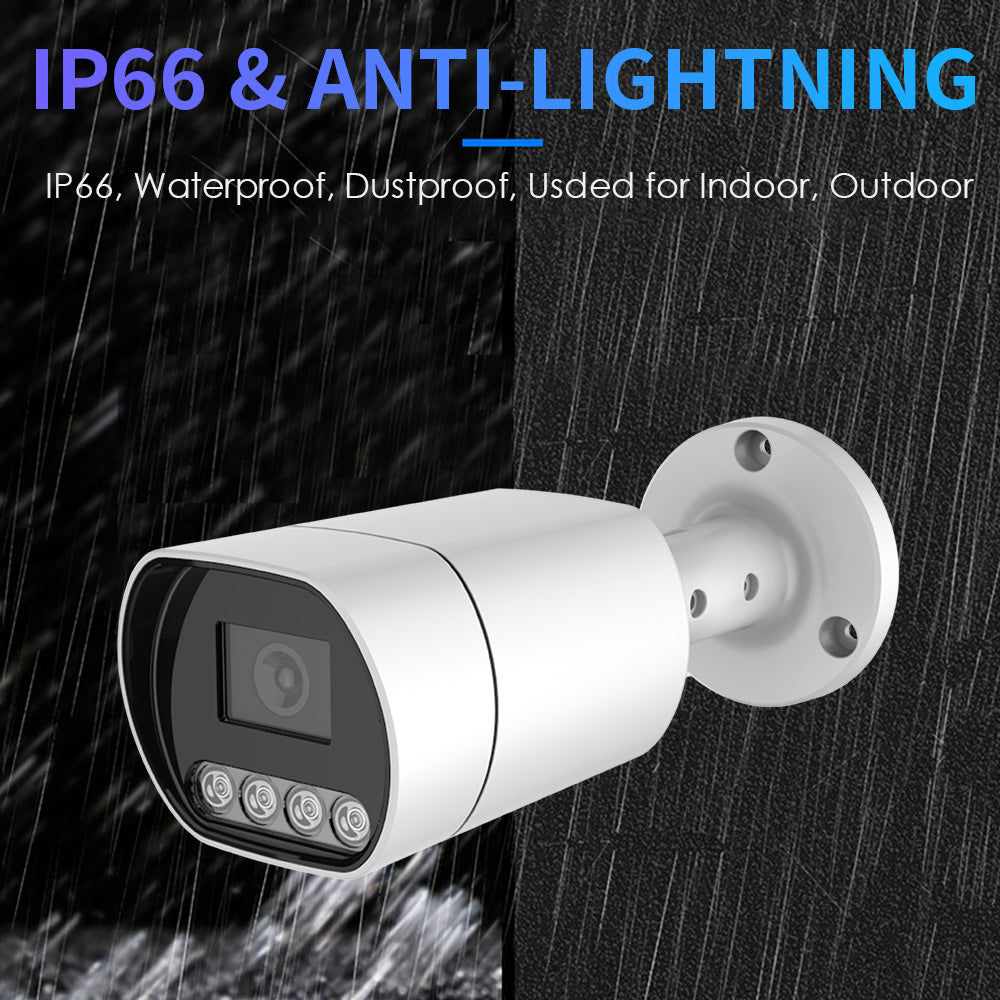

Package Contents	1x 3MP | 5MP | 8MP PoE Waterproof Compact Bullet Live Streaming IP Camera 1x Easy-to-Install Bracket 1x Matched Power Adapter DC12 2A 1x Attached Accessories
NOTE	Audio might not be so good when streaming live video to YouTube.
