H.265 1080P PoE 50FPS HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.

Name: H.265 1080P PoE 50FPS HDMI Video Encoder W/Storage RTMP RTSP SRT TS UDP HLS HTTP ONVIF Hikvision Protocol for IPTV Live Streaming to YouTube Facebook etc.
Brand: JTOKEN Official Store
SKU: HVE2EP
Price: 159.57 USD
Availability: InStock

Model ON-DMI-16EP ON-DNI-16EP

Plug Type EU Plug US Plug AU Plug UK Plug

Product variants

$159.57 USD

~~$169.57 USD~~ $159.57 USD

Sold out

Quantity

Overview

Power Modes - It can be powered not only by DC12V 1A or higher but also by PoE(Power Over Ethernet) with high efficiency up to 140 meters by just one single Ethernet cable(CAT5e cable recommended) if it's connected to a standard PoE switch(Not Included).

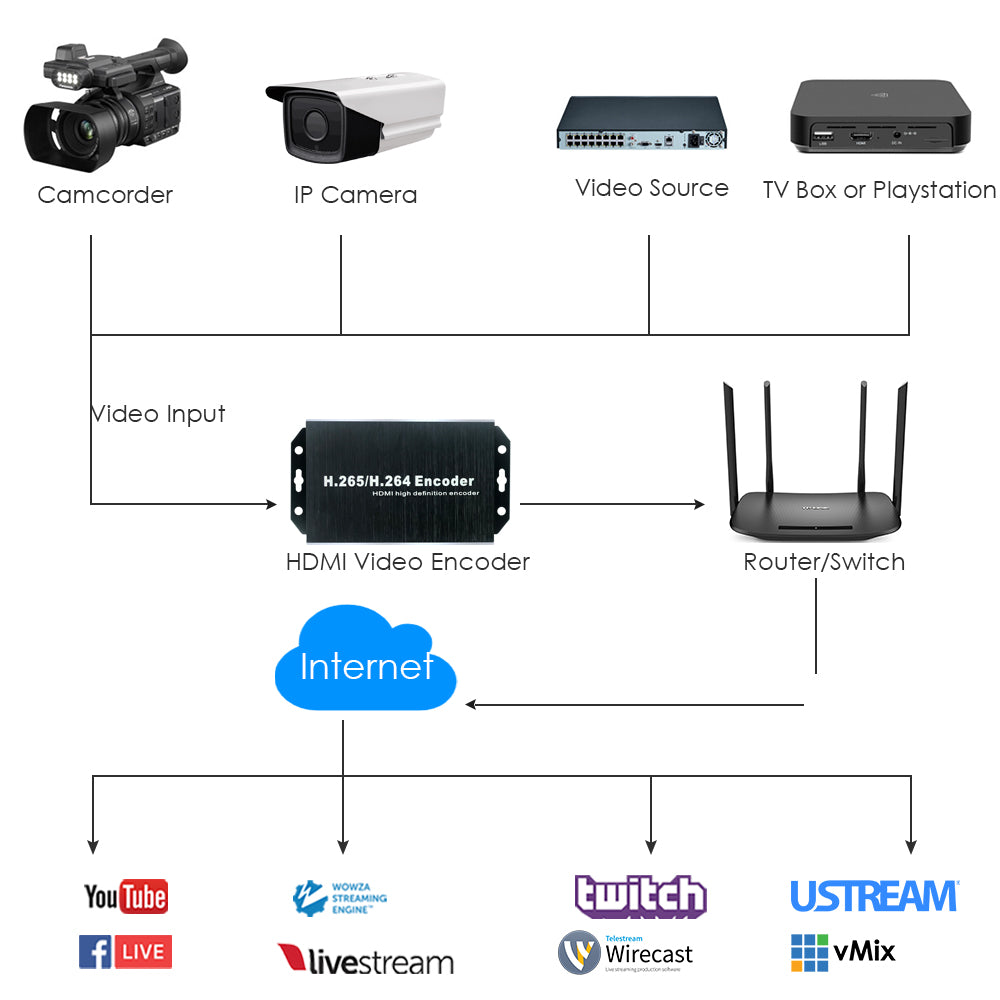

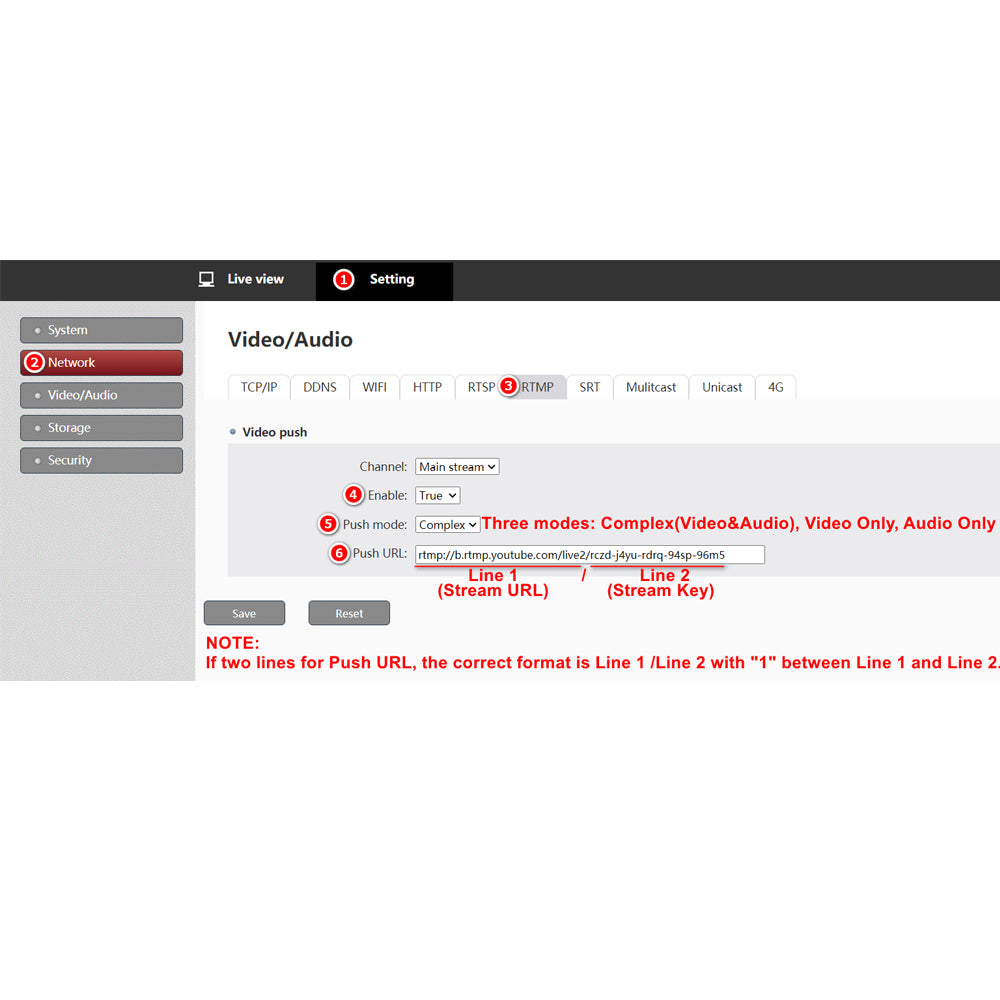

Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264 supported) like IPTV, but also for pushing stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
Multiple Applications - Applicable for IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. live broadcasting, CCTV surveillance, NVR, recording system etc.
Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast etc protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.

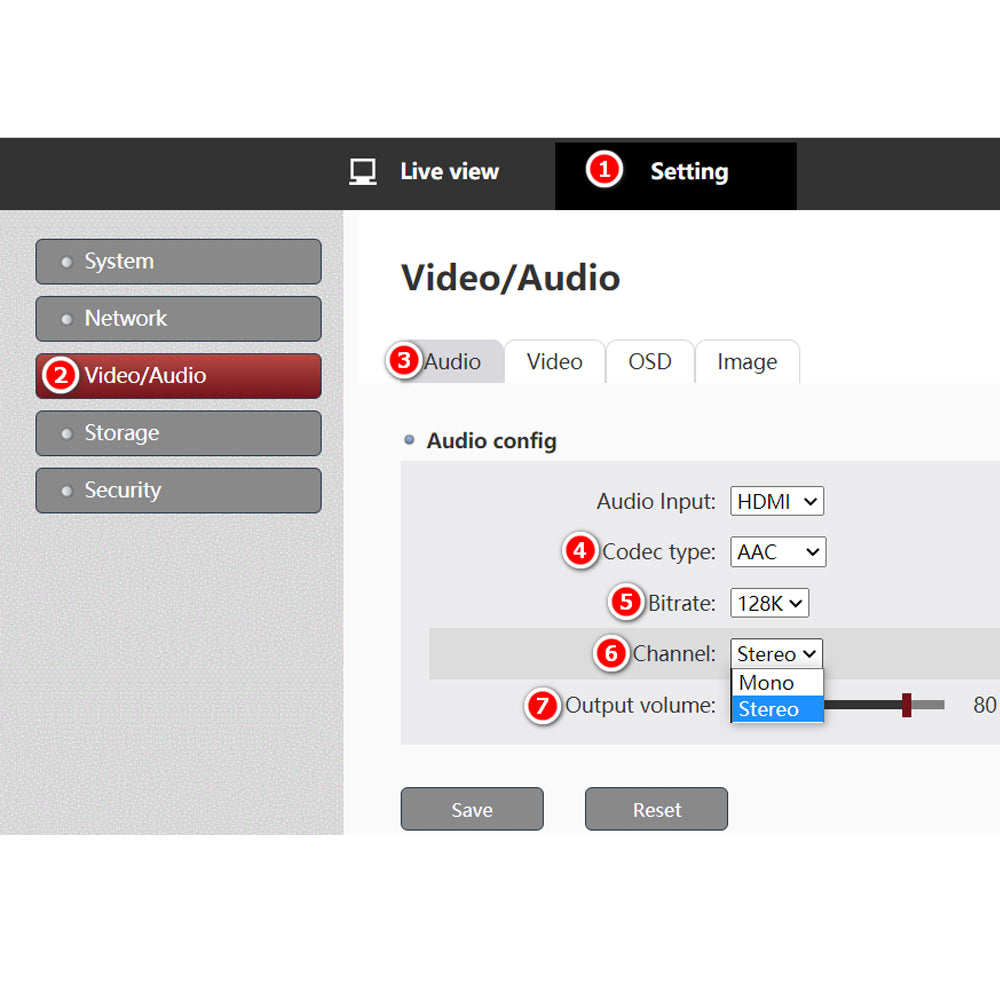

Cross Browsers - Real cross browers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
Recording & Download - Pretty easy to record real-time videos if you'd like to save them into the inserted SD card (max. 256G) in MP4, just pressing the reset/record button for one second. Just press it again and it will stop recording. Easy to preview and download the recorded videos by accessing the encoder.

Specification

SOC	Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default)
SOC	Model: ON-DMI-16EP (Max. 50fps) or ON-DNI-16EP (NDI Version)
Video/Audio Encoding	Video Encoding: H.265/H.264
	Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR)
	Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable)
	Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps(Configurable)
	Main Stream: 19201080、1600900、14401050、1440900、1360768、12801024、1280*720
	Sub Stream: 704576、640480、640352、352288、320*240
Video Stream	TS (Main Stream): http://192.168.1.120:80/ts/0
	TS (Sub Stream): http://192.168.1.120:80/ts/1
	HLS (Main Stream): http://192.168.1.120/hls/0.m3u8
	HLS (Sub Stream): http://192.168.1.120/hls/1.m3u8
	RTSP (Main Stream): rtsp://192.168.1.120:554/live/0
	RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1
	UDP: udp://@224.1.2.3:10000

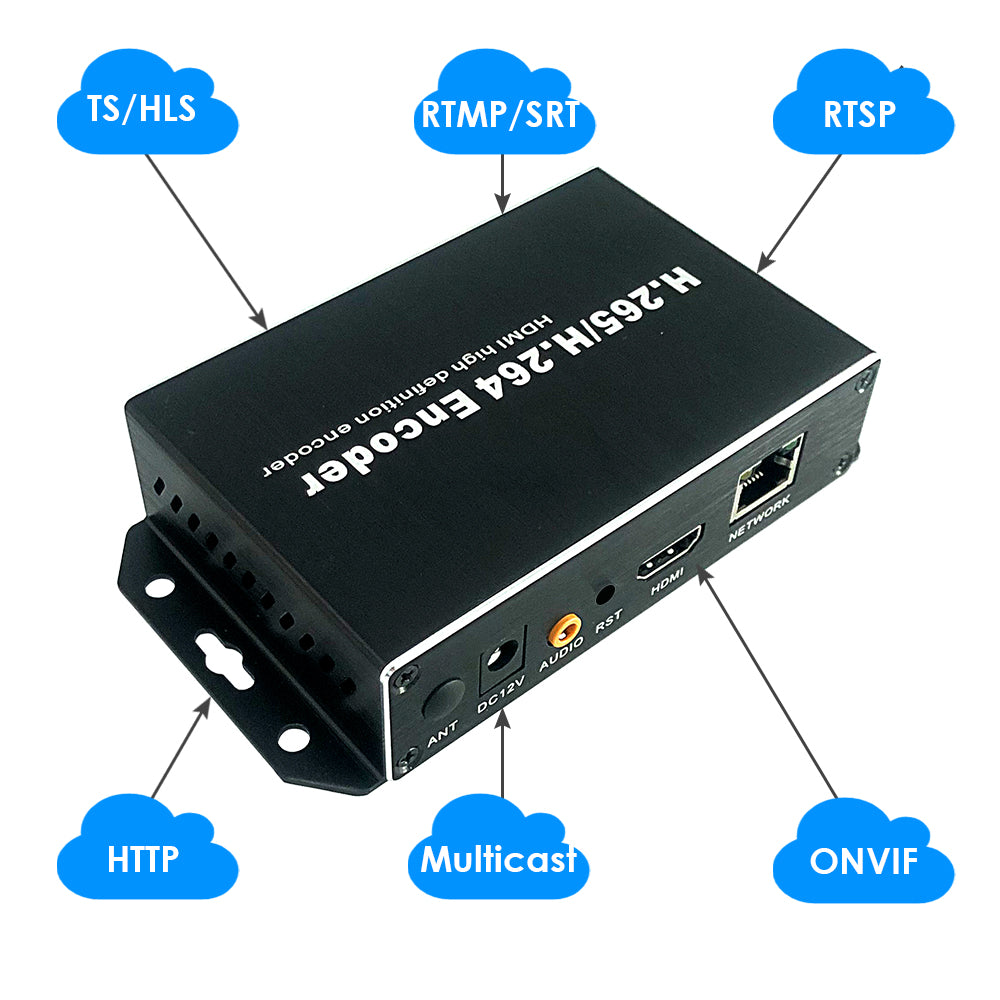

Protocols	TCP/IP、DHCP、DNS、DDNS、HLS、HTTP、RTP、RTSP、RTMP、SRT、TS、UDP、ONVIF

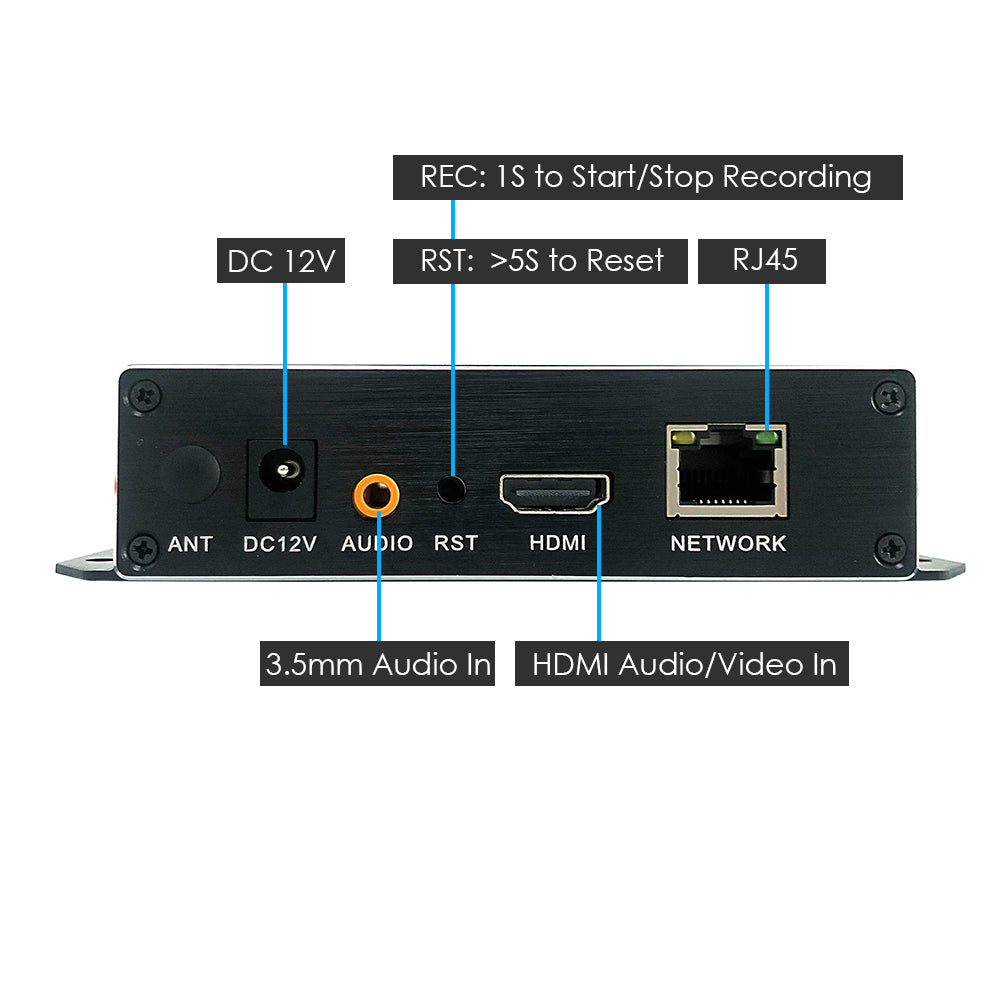

Interface	Network Port: RJ45 10M/100M Self Adaptive Ethernet Port
	HDMI: 1ch HDMI Input
	Audio: 1ch 3.5mm Line-in Port
	Power: 1ch DC12V Power Input
	Reset/Record: 1ch Reset/Record(Press it for one second to start/stop recording, Press it for more than 5 seconds to reset)
	SD Card Slot: 1ch Micro SD Card Slot(Max. 128G)
Others	Operating Temperature: -10℃~+55℃[14°F~131°F]
	Operating Humidity: ≤95%(Non-Condensing)
	Power Supply: DC12V 1A or Higher
	Power Consumption: ≤3W
	Unit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in]
	Package Dimension: 220mm x 150mm x 60mm[8.7in x 5.9in x 2.4in]
	Net Weight: 186g[0.41lb, 6.56oz]
	Gross Weight: 385g[0.85lb, 13.58oz]
Application	IPTV Satellite Modulator/Hotel TV System
	CCTV Camera/Camcorder
	UAV Image Transmission/DLSR Camera
	Drone/DV/FPV/Medical Equipment
	Digital Signage/Video Conference
	Online Live Streaming Broadcast or Server
	Teaching/Campus Broadcast/Telemedicine
	Multimedia Stitching Display
	NVR/Recording System
Package Include	1x HDMI Video Encoder or 1x NDI HDMI Video Encoder
	1x DC12V 1A Power Adapter
	1x HDMI Cable(1M)
	1x Ethernet Cable(1M)
	1x Live Broadcasting Quick Guide
NOTE	WiFi will not be available when NDI is enabled

User Manaul
