H.265 1080P PoE 50FPS HDMI Video Encoder W/RTMP RTSP SRT TS UDP HTTP ONVIF Hikvision Protool for IPTV Broadcasting to YouTube Facebook etc.
Regular price
$156.57 USD
Regular price
$166.57 USD
Sale price
$156.57 USD
Unit price
/
per
Couldn't load pickup availability
Share
![H.265 1080P PoE 50FPS HDMI Video Encoder W/RTMP RTSP SRT TS UDP HTTP ONVIF Hikvision Protool for IPTV Broadcasting to YouTube Facebook etc.](http://www.jtokenapp.com/cdn/shop/products/9f7ce89993bd403abc8d5c3c3d45aec6_1445x.jpg?v=1631631338)
![H.265 1080P PoE 50FPS HDMI Video Encoder W/RTMP RTSP SRT TS UDP HTTP ONVIF Hikvision Protool for IPTV Broadcasting to YouTube Facebook etc.](http://www.jtokenapp.com/cdn/shop/products/1512afadb5264cfdbc8d2a46828a1026_1445x.jpg?v=1631631338)
![H.265 1080P PoE 50FPS HDMI Video Encoder W/RTMP RTSP SRT TS UDP HTTP ONVIF Hikvision Protool for IPTV Broadcasting to YouTube Facebook etc.](http://www.jtokenapp.com/cdn/shop/products/8130f97401254e8ca8ea0bbb9e4d881c_1445x.jpg?v=1631631338)
![H.265 1080P PoE 50FPS HDMI Video Encoder W/RTMP RTSP SRT TS UDP HTTP ONVIF Hikvision Protool for IPTV Broadcasting to YouTube Facebook etc.](http://www.jtokenapp.com/cdn/shop/products/9d62f771d6154bf782809cd12f8ca8b3_1445x.jpg?v=1631631338)
![H.265 1080P PoE 50FPS HDMI Video Encoder W/RTMP RTSP SRT TS UDP HTTP ONVIF Hikvision Protool for IPTV Broadcasting to YouTube Facebook etc.](http://www.jtokenapp.com/cdn/shop/products/49e37f3d913c48a58e3c681def1c407b_c56d6913-847f-4f43-afdb-08eac6b4656a_1445x.jpg?v=1631631338)
![H.265 1080P PoE 50FPS HDMI Video Encoder W/RTMP RTSP SRT TS UDP HTTP ONVIF Hikvision Protool for IPTV Broadcasting to YouTube Facebook etc.](http://www.jtokenapp.com/cdn/shop/products/ba7e4cc83db84cc5bc91afdfae788e27_99bbf1c4-1f2e-413a-9275-8f22044afc58_1445x.jpg?v=1631631338)
![H.265 1080P PoE 50FPS HDMI Video Encoder W/RTMP RTSP SRT TS UDP HTTP ONVIF Hikvision Protool for IPTV Broadcasting to YouTube Facebook etc.](http://www.jtokenapp.com/cdn/shop/products/82958f0253db4f54addd77fa2ec50449_43755804-04b9-46db-a477-c9d5a2cd41af_1445x.jpg?v=1631631338)
Overview
- Power Modes - It can be powered not only by DC12V 1A or higher but also by PoE(Power Over Ethernet) with high efficiency up to 140 meters by just one single Ethernet cable(CAT5e cable recommended) if it's connected to a standard PoE switch(Not Included).

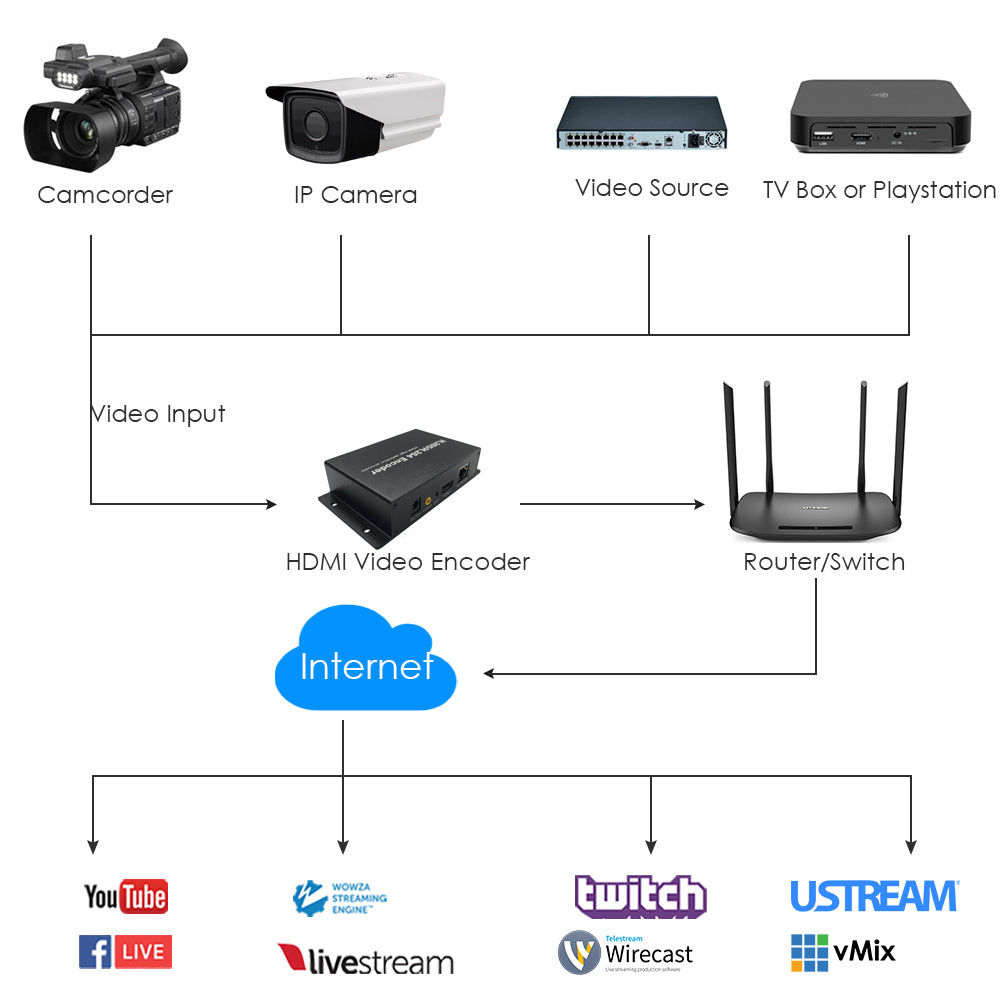

- Multiple Broadcasting - Suitable not only for pulling stream to your own server via TS (H.265/H.264 supported) like IPTV, but also for pushing stream via RTMP (H.264 only supported) to Wowza Streaming Engine, YouTube, Twitch, Ustream, Facebook Live, Livestream, Wirecast, vMix etc. to do broadcasting. It also supports stream pushing via dual addresses.
- Multiple Applications - Applicable for IPTV, video conference, video game, telemedicine, remote teaching, major events, WeMedia etc. live broadcasting, CCTV surveillance, NVR, recording system etc.
- Multiple Protocols - TCP/IP, DHCP, DNS, DDNS(3322, Oray), HTTP, RTP, RTSP, RTMP, TS, UDP, ONVIF, Multicast etc protocols supported. It's compatible with Hikvision private prococol which allows it to work with iVMS-4200/8700 and video recorded at H.265 with Hikvision's NVR.

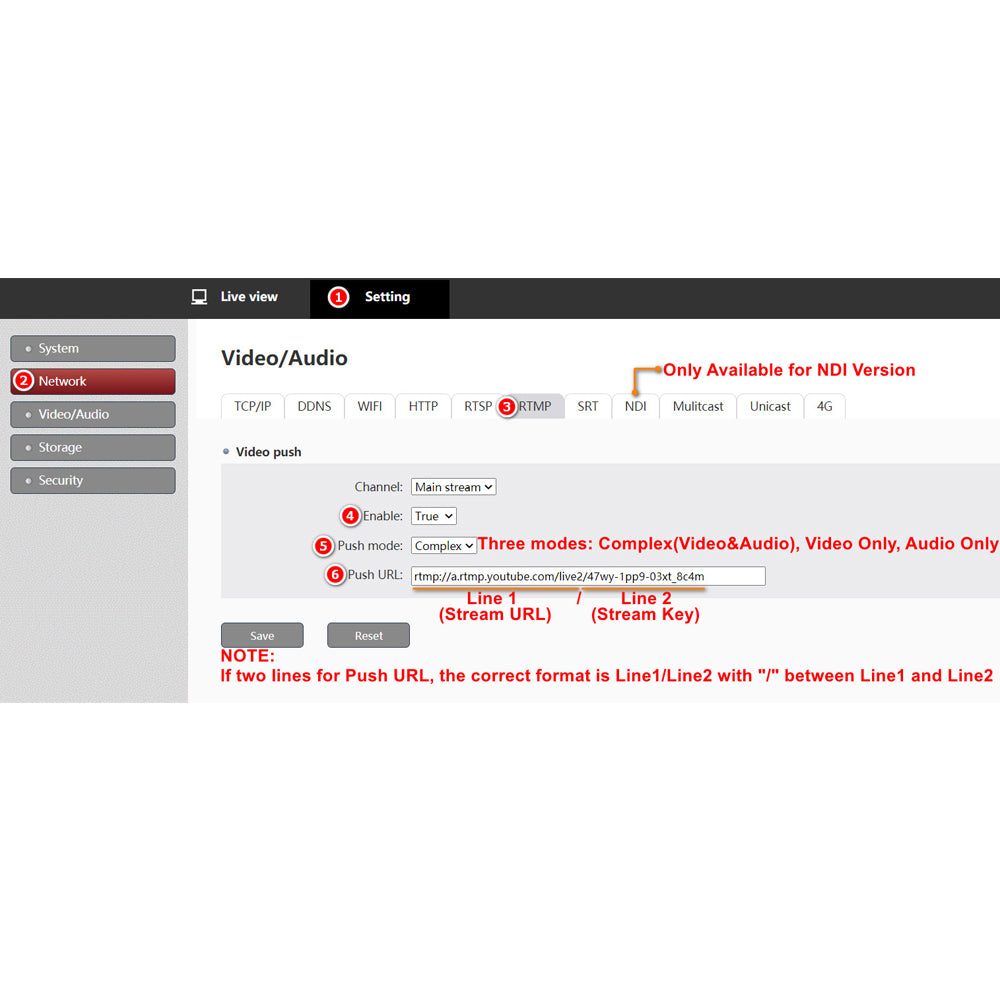

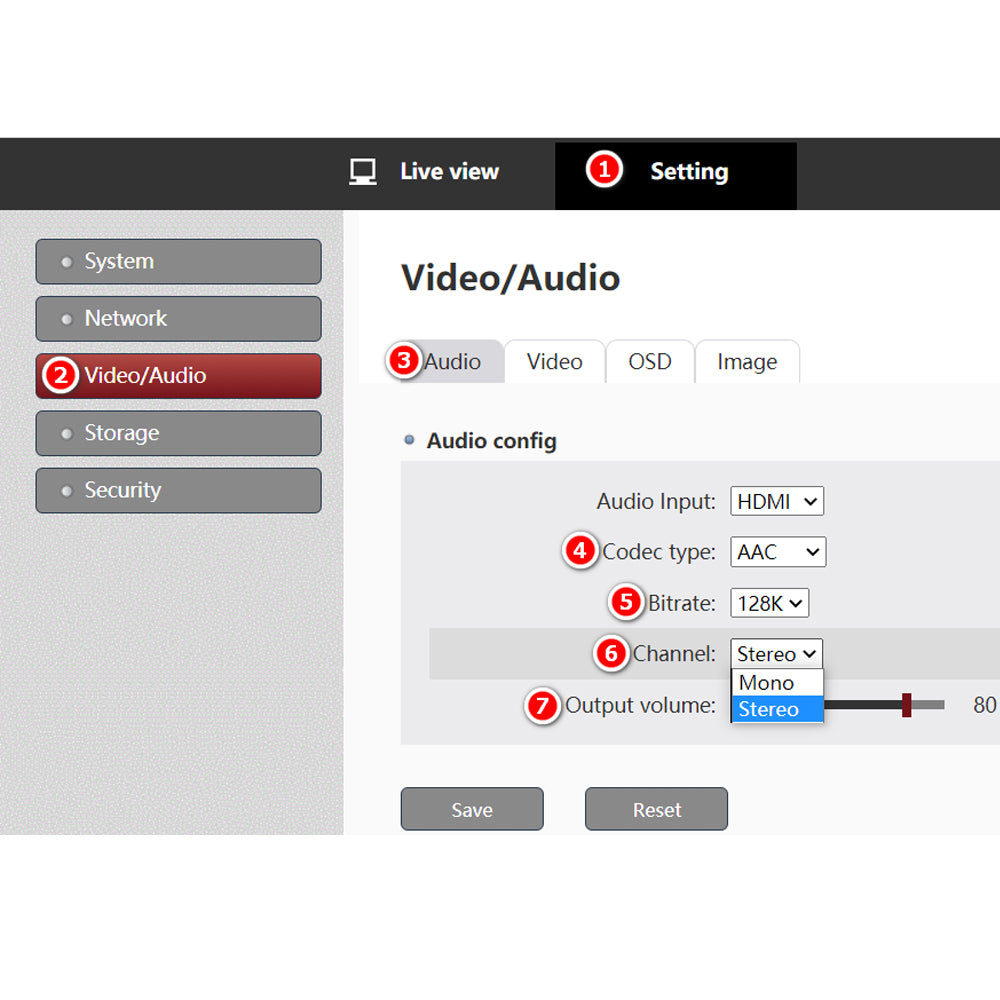

- Cross Browsers - Real cross browers supported like IE, Microsoft Edge, Google Chrome, Firefox, Safari etc. With user-friendly UI, you can also preview live video directly over browsers, set audio as AAC, bitrate as 500(recommended), insert your logo(jpg at 200x200px) and OSD text, and remote upgrade etc.
![](https://cdn.shopify.com/s/files/1/0576/7095/9253/files/DHVE2DP_01.jpg?v=1650292536)
![](https://cdn.shopify.com/s/files/1/0576/7095/9253/files/DHVE2DP_02.jpg?v=1650292536)
![](https://cdn.shopify.com/s/files/1/0576/7095/9253/files/DHVE2DP_03.jpg?v=1650292536)
![](https://cdn.shopify.com/s/files/1/0576/7095/9253/files/DHVE2DP_04.jpg?v=1650292536)
Specification
SOC |
Basic: User: admin; Password: 12345 Static IP: 192.168.1.120 (Default) |
Model: ON-DMI-16DP (Max. 50fps) or ON-DNI-16DP (NDI Version) | |
Video/Audio Encoding | Video Encoding: H.265/H.264 |
Audio Encoding: AAC/G.711A/G.711U; Sampling: 32K/48K/64K/128K/256K or 8000Hz(NVR) | |
Bitrate: Constant Bitrate(CBR)/Variable Bitrate(VBR); 64kbps-12Mbps(Configurable) | |
Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps(Configurable) | |
Main Stream: 1920*1080、1600*900、1440*1050、1440*900、1360*768、1280*1024、1280*720 | |
Sub Stream: 704*576、640*480、640*352、352*288、320*240 | |
Video Stream |
TS (Main Stream): http://192.168.1.120:80/ts/0 |
TS (Sub Stream): http://192.168.1.120:80/ts/1 | |
HLS (Main Stream): http://192.168.1.120/hls/0.m3u8 | |
HLS (Sub Stream): http://192.168.1.120/hls/1.m3u8 | |
RTSP (Main Stream): rtsp://192.168.1.120:554/live/0 | |
RTSP (Sub Stream): rtsp://192.168.1.120:554/live/1 | |
UDP: udp://@224.1.2.3:10000 | |

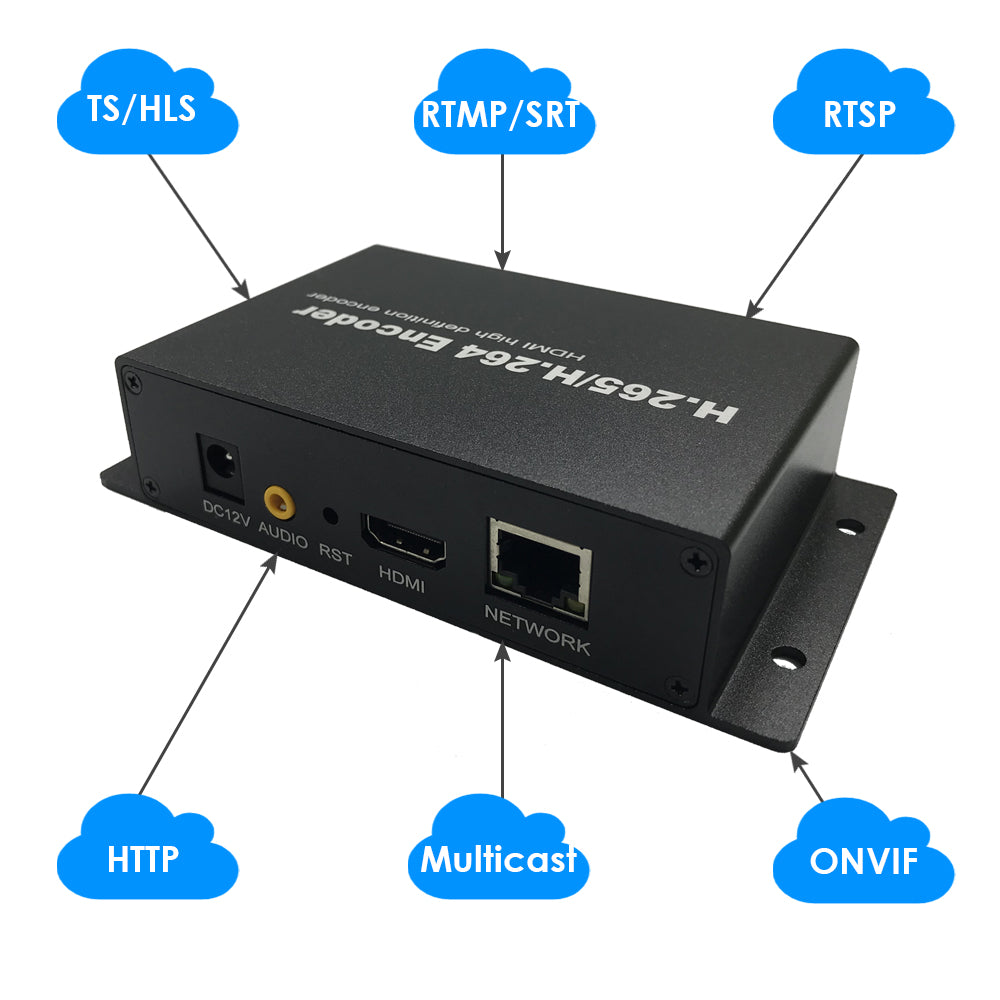

Protocols | TCP/IP、DHCP、DNS、DDNS、HLS、HTTP、RTP、RTSP、RTMP、SRT、TS、UDP、ONVIF |

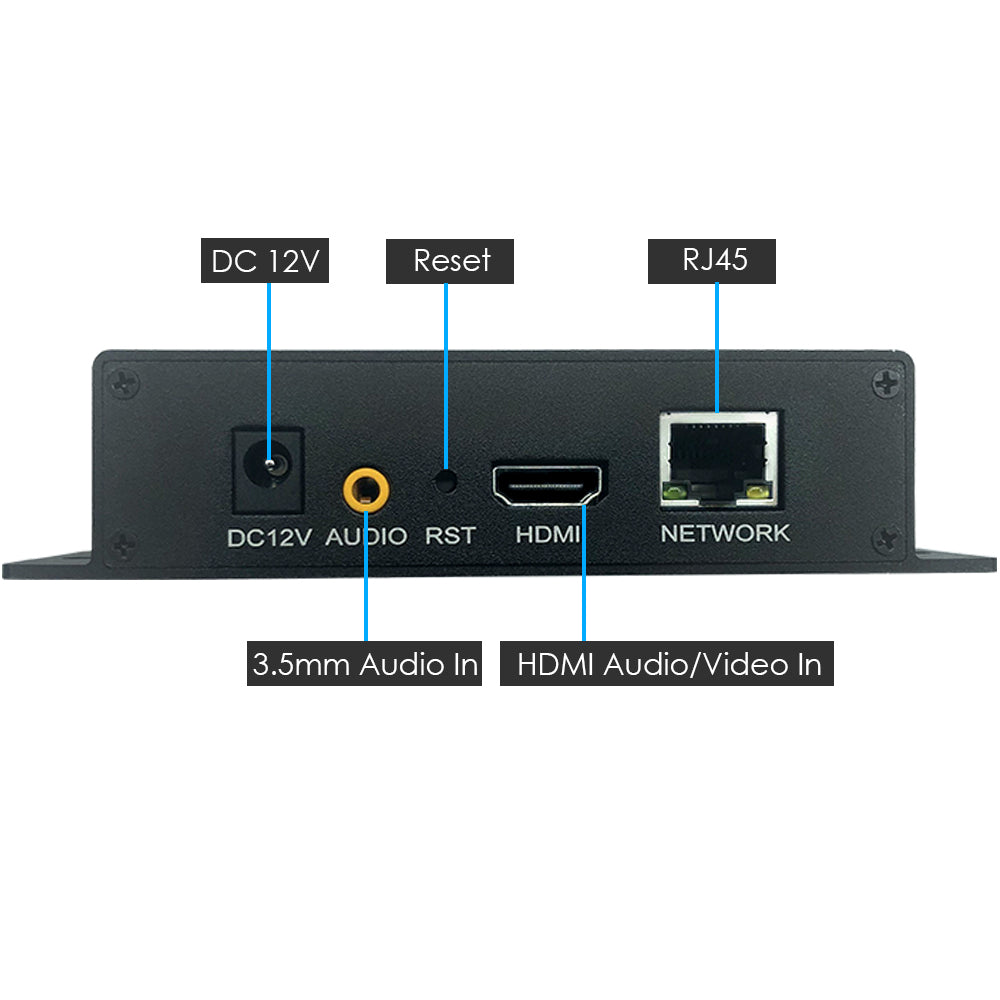

Interface | Network Port: RJ45 10M/100M Self Adaptive Ethernet Port |
HDMI: 1ch HDMI Input | |
Audio: 1ch 3.5mm Line-in Port | |
Power: 1ch DC12V Power Input | |
Reset: 1ch Reset(Press it for more than 5 seconds to reset) | |
Others |
Operating Temperature: -10℃~+55℃[14°F~131°F] |
Operating Humidity: ≤95%(Non-Condensing) | |
Power Supply: DC12V 1A or Higher | |
Power Consumption: ≤3W | |
Unit Dimension: 109mm x 74mm x 25mm[4.29in x 2.9in x 0.98in] | |
Package Dimension: 220mm x 150mm x 60mm[8.7in x 5.9in x 2.4in] | |
Net Weight: 186g[0.41lb, 6.56oz] | |
Gross Weight: 385g[0.85lb, 13.58oz] | |
Application |
IPTV Satellite Modulator/Hotel TV System |
CCTV Camera/Camcorder | |
UAV Image Transmission/DLSR Camera | |
Drone/DV/FPV/Medical Equipment | |
Digital Signage/Video Conference | |
Online Live Streaming Broadcast or Server | |
Teaching/Campus Broadcast/Telemedicine | |
Multimedia Stitching Display | |
NVR/Recording System | |
Package Include |
1x HDMI Video Encoder or 1x NDI HDMI Video Encoder |
1x DC12V 1A Power Adapter | |
1x HDMI Cable(1M) | |
1x Ethernet Cable(1M) | |
1x Live Broadcasting Quick Guide | |
NOTE | WiFi will not be available when NDI is enabled |
